1 Filament winding Machine

Filament winding is a fabrication technique for manufacturing composite material, usually in the form of cylindrical structures. The process involves winding filaments under varying amounts of tension over a male mould or mandrel. The mandrel rotates while a carriage moves horizontally, laying down fibers in the desired pattern. The most common filaments are carbon or glass fiber and are coated with synthetic resin as they are wound. Once the mandrel is completely covered to the desired thickness, the mandrel is placed in an oven to solidify (set) the resin. Once the resin has cured, the mandrel is removed, leaving the hollow final product.

2 Filament winding Machine Configuration

The simplest winding machines have two axes of motion, the mandrel rotation and the carriage travel (usuallyhorizontal). Two axis machines are best suited to the manufacture of pipes only. For pressure vessels such as LPG or CNG containers (for example) it is normal to have a four axis winding machine. A four-axis machine additionally has a radial (cross-feed) axis perpendicular to carriage travel and a rotating fibre payout head mounted to the cross-feed axis. The payout head rotation can be used to stop the fibre band twisting and thus varying in width during
winding.

3 Filament winding Machine

Machines with more than four axes can be used for advanced applications, six-axis winding machines usually have 3 linear and 3 rotation axes. Machines with more than 2 axes of motion have computer/CNC control, however these days new 2-axis machines mostly have numeric control. Computer controlled filament winding machines require the use of software to generate the winding patterns and machine paths, such software can normally be provided by filament winding machine manufacturers or by using independent products such as Cadfil or Cadwind.

Our Filament winding Machines are designed for rugged and heavy duty applications. All parts ahve been designed for long lasting durability. The machines are built from components that are easily replaceable worldwide.

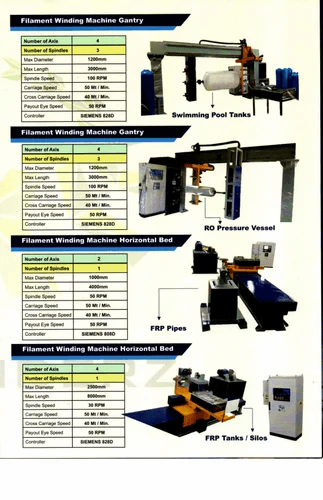

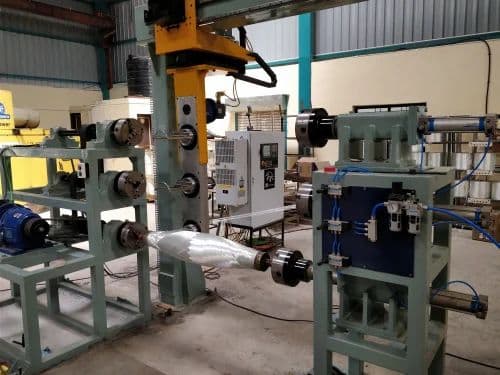

4 Filament winding Machine Range

We can offer a full line of equipment and materials to help you start up your own company. We offer technical support such as layout and setup with technical training on equipment and material.
We manufacture FIlament Winding Machine with diameter range of 50m to 3000mm .

The control system is desinged with all the modern technology. The systems used are Siemens 802Dsl and 828. Other systems like 840D and 840Dsl can be provided on special request with cost implications.
